Acorn 180 Curved Stairlift

Able to be installed into any type of curved staircase you may have in your New Jersey home and custom designed from the ground-up
With Acorns Curved stairlift installed, getting around the home you love will no longer be a concern.

No structural changes needed in your New Jersey home

Slimline design, and with the ability to fold away when not in use

Stairlift is fitted directly to the staircase, and not the wall, for a quick and mess-free installation

Maximum weight of 264lbs

Acorn curved Stairlift front view in new Jersey

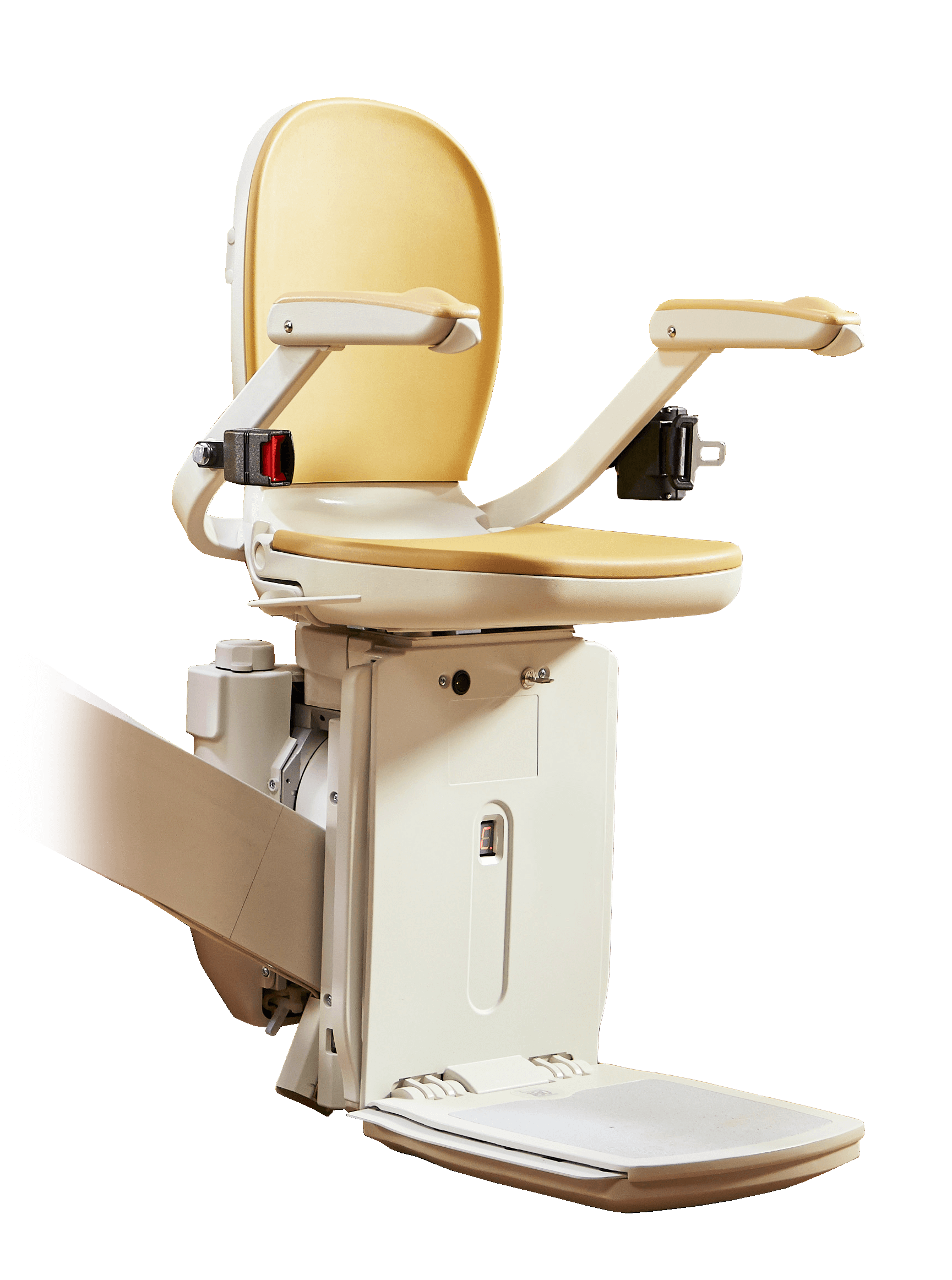

Acorn curved Stairlift angle view in new Jersey

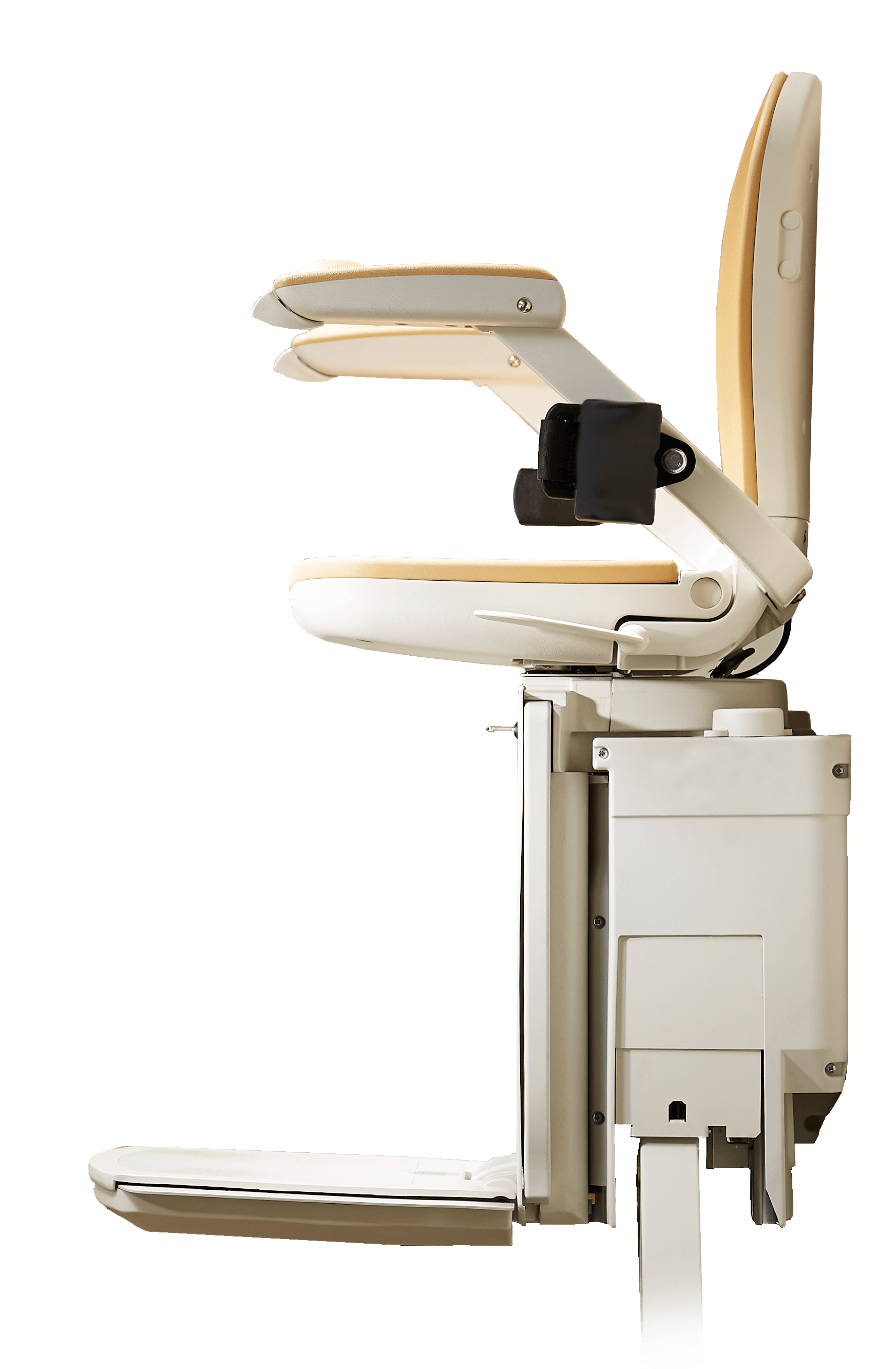

Acorn curved Stairlift side view in new Jersey

CLICK HERE FOR TECHINAL DETAILS

Angles
Min	0Â°
Max	58Â°

Maximum Rail Length
30 metres	1181 inches

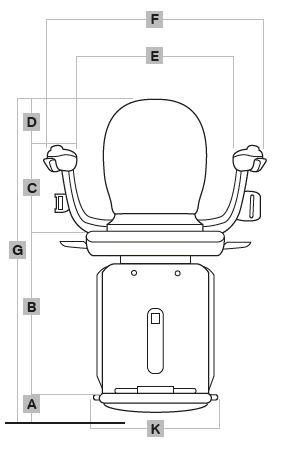

Dimensions		mm	inch
A	Floor to top of footrest	50	2
B	Top of footrest to top of seat	485	19
C	Top of seat to top of arms	245	9.75
D	Top of arms to top of seat back	195	7.75
E	Width between armrests	480	19
F	Overall width including seatbelt	620	24.5
G	Overall height	975	38.25

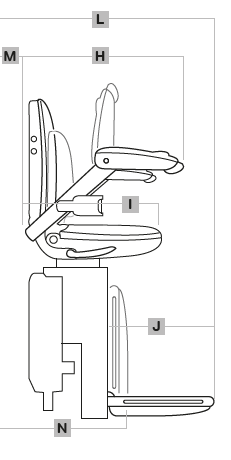

H	Length of arms from seat back	460	18
I	Length of seat base from seat back	435	17
J	Length of footrest	360	14.25
K	Width of footrest	375	14.75
L	Front of footrest to stringer	640	25.25
M	Back of seat to stringer	35	1.5
N	Folded width	335	13.25
O	Minimum width required to swivel at top	690	27.25

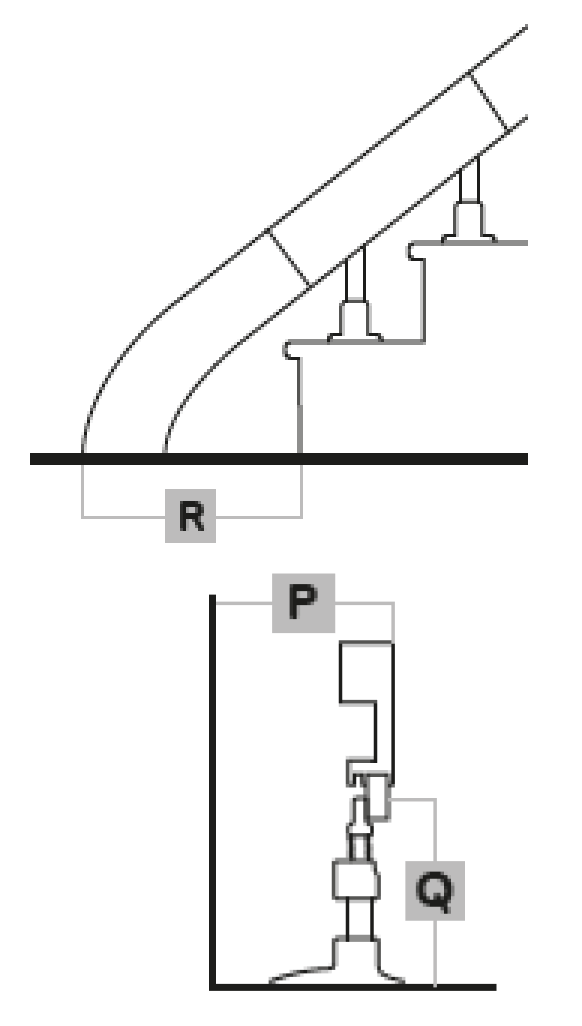

P	Distance from front of rail to stringer	180	7
Q	Height of leg	125 (min) 650 (max)	5 (min) 25.5 (max)
R	Front of drop nose to first stair	450	17.75

Specifications
Motor output speed	No greater than 0.15 metres per second
Method of drive	Rack and Pinion
Motor Power	0.375KW
Carriage Power Supply	29.6v D2C batteries
Maximum capacity	120kg
Power supply input range	100-240v AC

Acorn curved Stairlift installed in home in new Jersey

Installing the Acorn 180 Curved Stairlift in your home in New Jersey

After you let us know you would like your custom stairlift to be fitted in your home in New Jersey just a few days are required to complete instillation of your Acorn Curved Stairlift.

Aftercare services for your Acorn 180 Curved Stairlift.

Aftercare is a top priority at Acorn, as well as to us as a partner of America's leading stairlift manufacturer. We want to ensure you're always entirely happy with your Acorn Curved Stairlift.
To ensure of this, Acorn's dedicated help desk is just a phone call away 365 days a year. Extended stairlift warranties are available also, meaning technicians can visit your home in New Jersey in the unlikely event of a breakdown and also covers the cost of all callouts, parts and labor.

Acorn curved Stairlift aftercare in new Jersey
